PC500 5.5” Video Switcher Mixer –8-Channel Video Switcher – 4 SDI + 4 HDMI Inputs, 4K HDMI, Multi-View, NDI Support, Live Streaming & Recording

PC500 5.5” Video Switcher Mixer –8-Channel Video Switcher – 4 SDI + 4 HDMI Inputs, 4K HDMI, Multi-View, NDI Support, Live Streaming & Recording

$594.00
$699.00 $594.00
Sale Sold out
Shipping calculated at checkout.

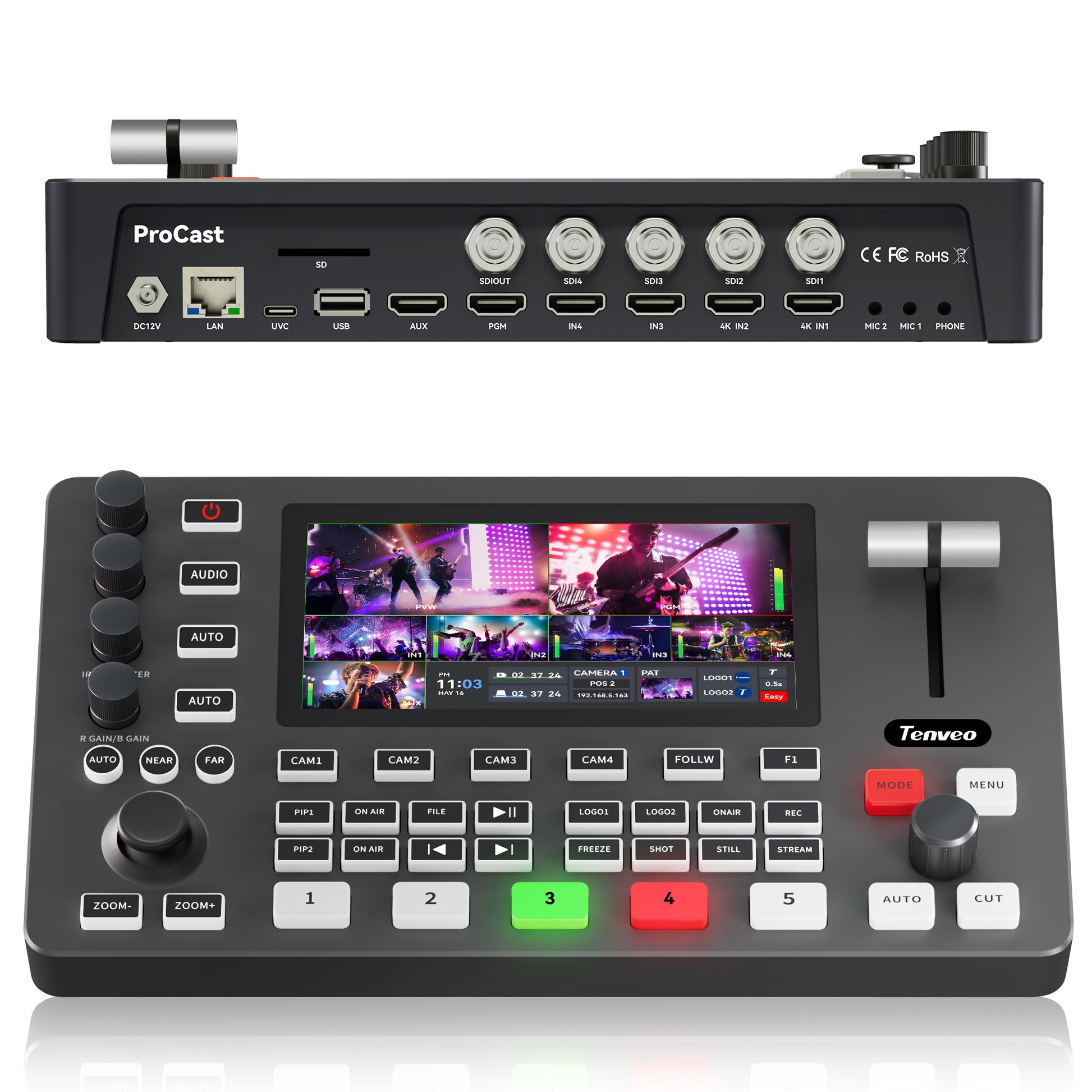

  • 5.5-Inch Full HD Touchscreen Display
    Enjoy crystal-clear operation and real-time monitoring with a 1920×1080 full HD touchscreen, making live production easier and more intuitive.
  • 8-Choose-4 Channel Switching with 4K Input Support
    Seamlessly switch between up to 8 input sources (4×SDI + 4×HDMI). Supports 4K and NDI input for flexible integration of multiple cameras and video devices.

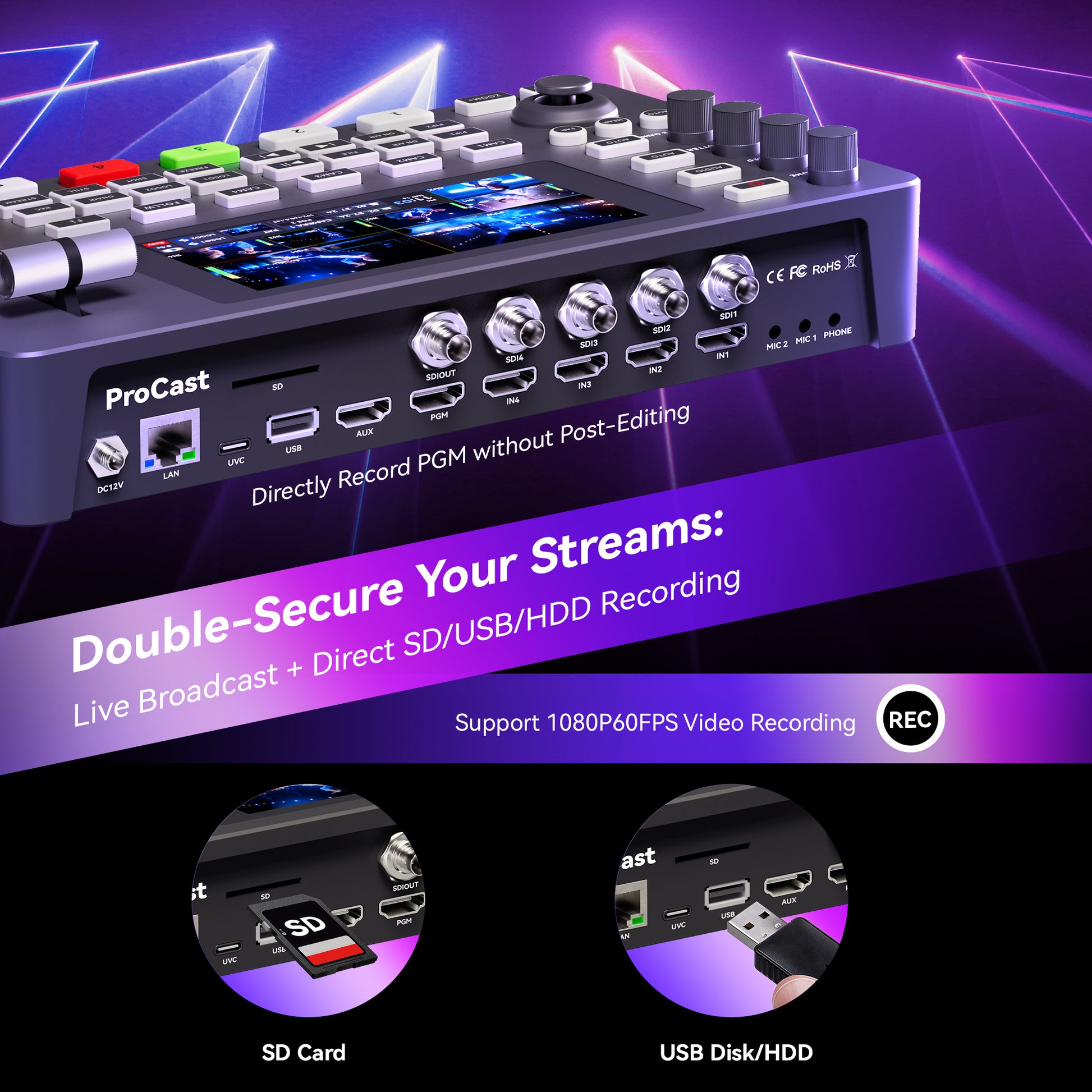

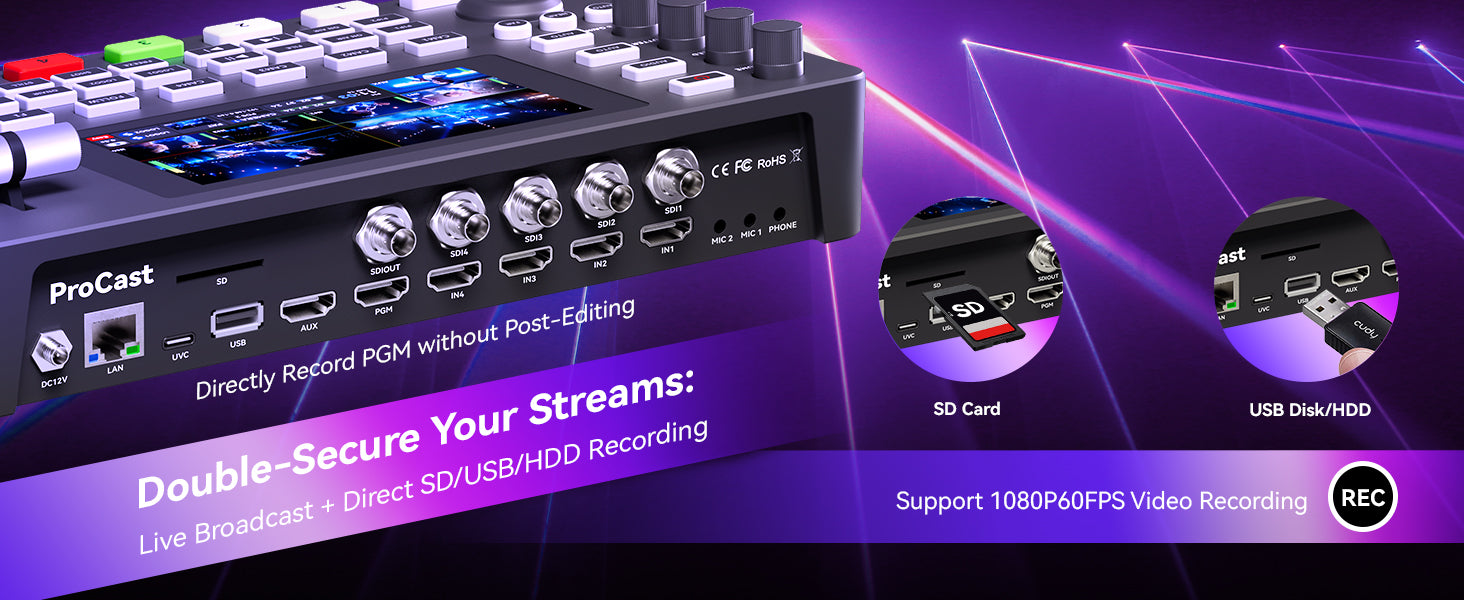

  • Built-in Recording & Media Playback
    Record directly to SD cards or USB drives — no external recorder needed. Built-in media player allows instant video playback or reuse as an input source.
  • Professional Live Streaming & Control

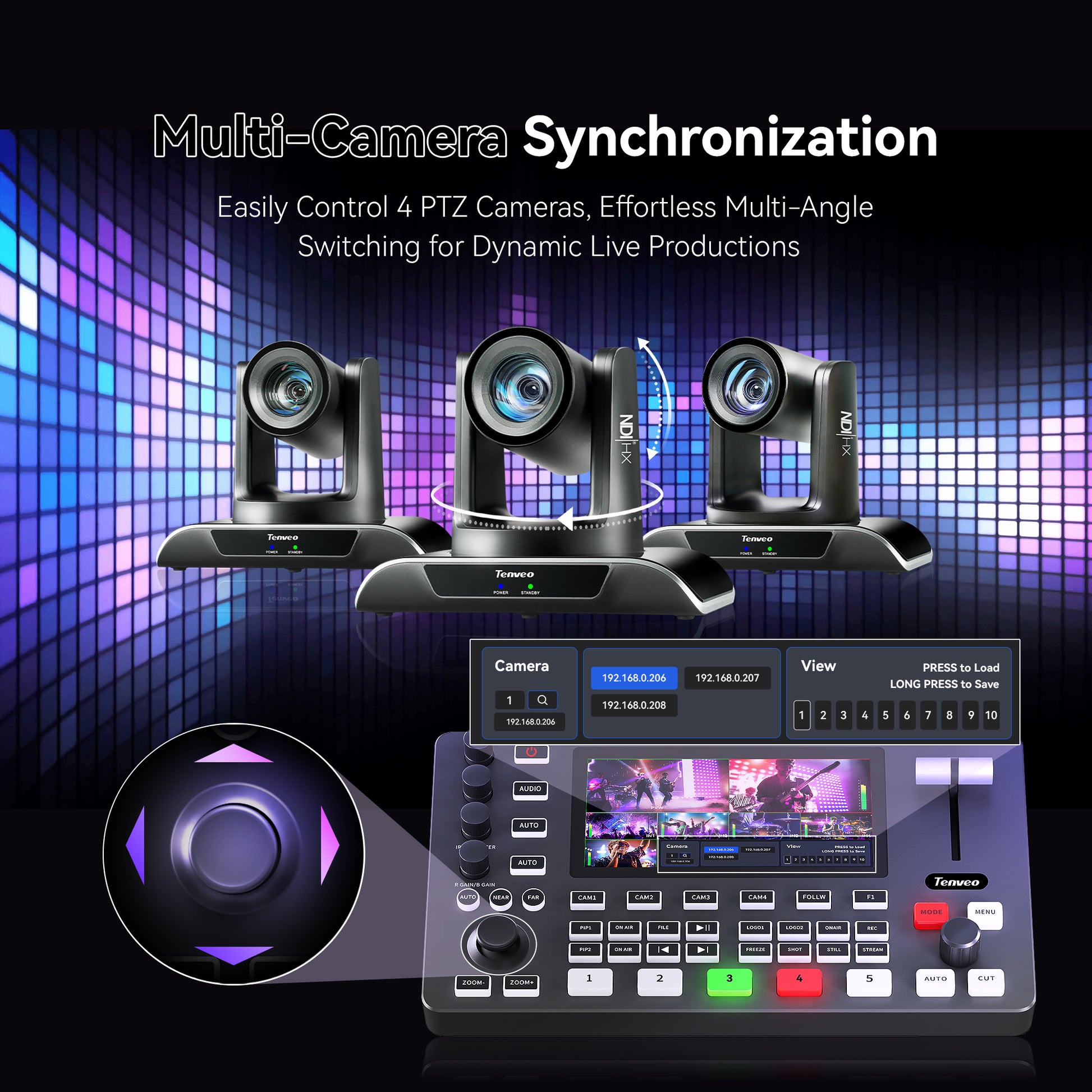

    Supports SRT, RTMP, RTSP, VISCA, and NDI protocols for smooth live streaming. Control via LAN, web browser, or PTZ camera network for versatile workflow management.
  • Multi-Format Output & Audio Integration
    Output through SDI, HDMI, and USB-C (UVC). Compatible with MIC/LINE stereo inputs and headphone monitoring — perfect for studios, live events, and conference.
View full details

Specification

Product Model: PC500

Type: Video Conference System
Screen: 5.5 inch
Resolution: 1920 × 1080
Decoding Capability: Supports H.264, up to 1080p60fps

Protocols: SRT, RTMP, RTSP, VISCA, NDI

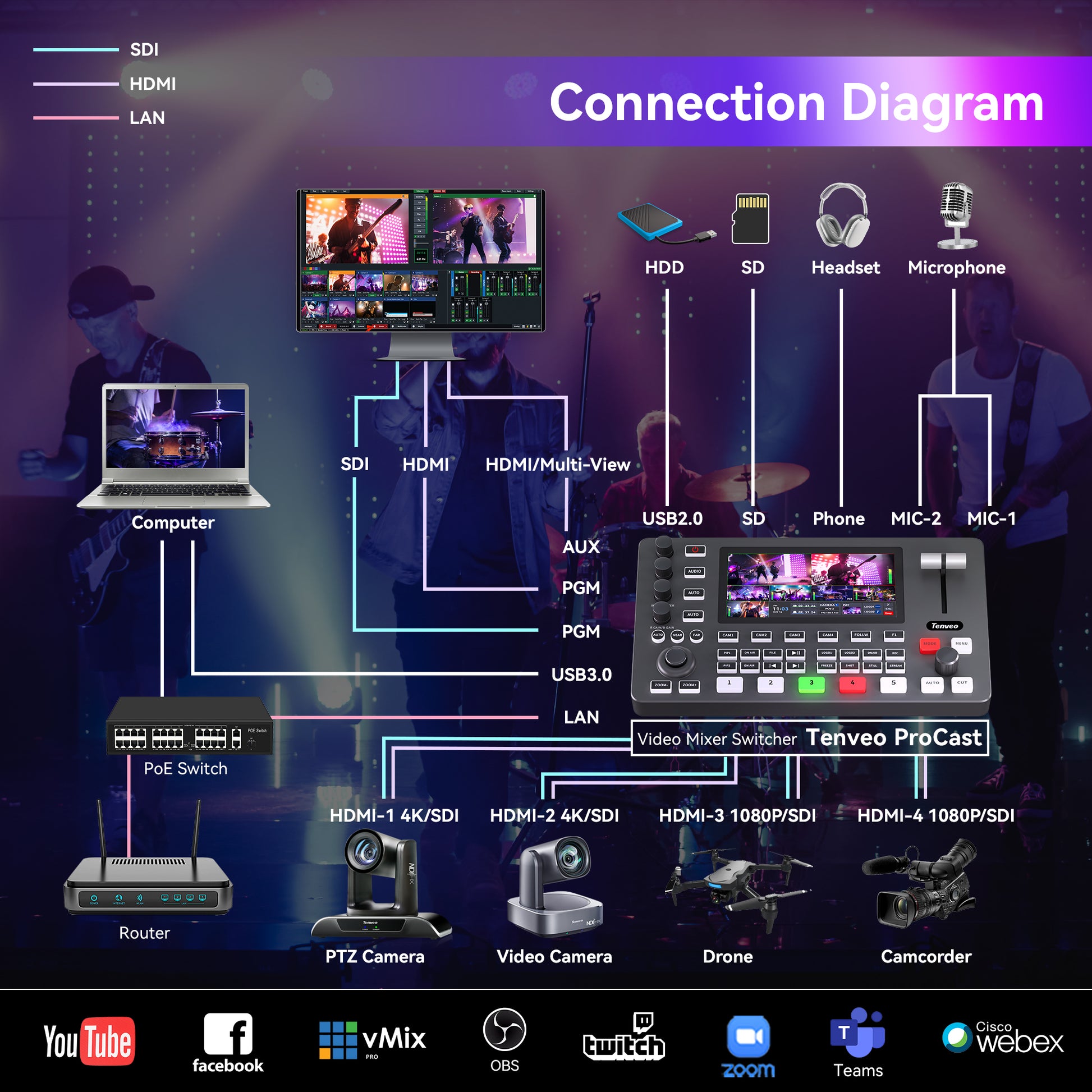

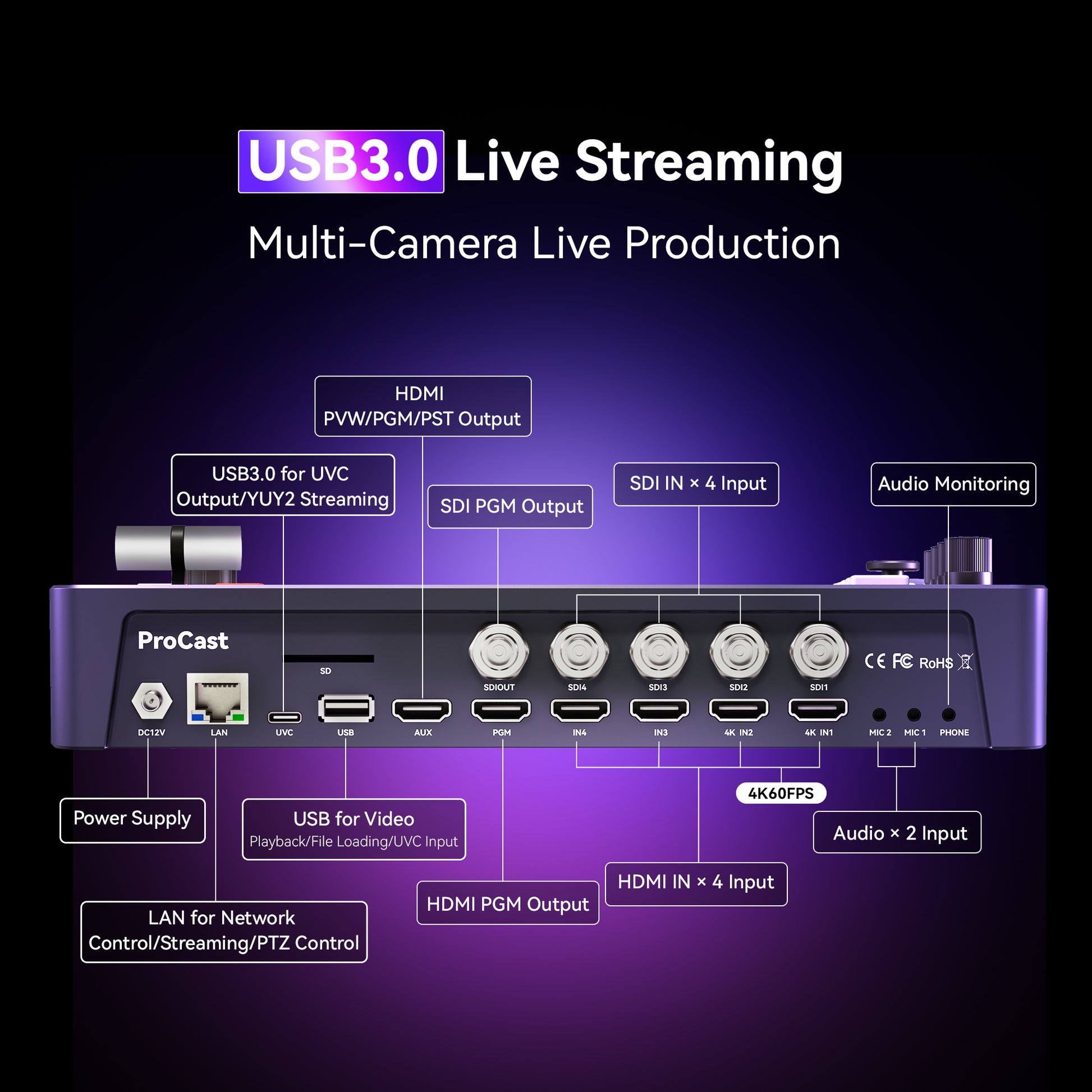

Input Interfaces:

  • 3G-SDI ×4
  • HDMI 2.0 ×2 (4K Input Interface)
  • HDMI 1.3 ×2 (1080p Input Interface)
  • USB 2.0 ×1 (Type-A)

Output Interfaces:

  • 3G-SDI ×1 (PGM Output)
  • HDMI 1.3 ×1 (PGM Output)
  • HDMI 1.3 ×1 (PGM / MV Multiplexed Output)
  • USB 3.0 ×1 (Type-C)

Audio:

  • MIC IN ×2 (3.5mm Audio Interface)
  • PHONES ×1 (3.5mm Audio Interface)

Control:

  • LAN ×1 (Network Control / Network Streaming / PTZ Camera Control)
