Professional Video Switchers & Mixers: The Complete Production Guide

A two-camera church stream shouldn't require the same hardware as an ESPN broadcast truck.

But try shopping for a video mixer switcher in the $500–$3,000 range and you'll hit a problem that's frustrated small studios, IT coordinators, and worship tech volunteers for years: almost nothing in that price band gives you SDI and HDMI inputs, NDI support, built-in streaming, and PTZ camera control in a single box.

Below that range, you're locked into HDMI-only consumer switchers. Above it, you're paying broadcast prices for features you'll never touch.

And the guides that should help?

Most treat "switcher" and "mixer" as the same word, skip NDI's bandwidth requirements entirely, and never mention that your cable run distance matters more than your resolution spec.

Quick Takeaways

• Video switchers and video mixers are used interchangeably today, but matrix switchers and production switchers are entirely different product categories
• SDI cables carry signal reliably up to 300 ft; HDMI tops out around 50 ft passive, so cable distance often decides which inputs you need
• Full NDI at 1080p60 consumes roughly 100–150 Mbps per stream, making a dedicated gigabit network segment non-negotiable
• The $500–$3,000 mid-tier has almost no switcher combining SDI, HDMI, NDI, streaming, and PTZ control in one unit
• A hardware switcher can pay for itself in one or two events when freelance multi-cam crews run $1,500–$3,000 per shoot

What's the actual difference between a video switcher, a mixer, and a matrix?

The market uses "switcher" and "mixer" interchangeably now, but the original distinction matters, and a matrix switcher is a completely different product solving a completely different problem.

Source - Alt: Live video production switcher with multi-camera feed showing Camera 1, Camera 2, and Camera 3 inputs on monitors

Historically, a video switcher performed hard cuts between sources. Camera A live, press a button, Camera B live.

A video mixer added transitions (dissolves, wipes, chroma keys, picture-in-picture) on top of that switching capability.

Today, every device marketed as a "video switcher" includes mixing features, so the terms have collapsed into one.

A video matrix switcher is something else entirely.

It's a signal routing device: a patchbay that sends any input to any output. AV integrators install them in conference rooms and command centers where multiple displays need different sources.

No transitions, no overlays, no live production. If you're shopping for multi-camera streaming or recording, a matrix isn't what you want.

Production switchers at the broadcast end (units with dedicated M/E busses, aux outputs, and macro programming) start around $5,000 and climb fast. For the operators this guide serves, the sweet spot sits below that tier.

How do you choose between SDI and HDMI inputs?

Cable run length decides this more than anything else. SDI carries a reliable signal up to 300 ft on a single coax; HDMI maxes out around 50 ft passive, and most venues, classrooms, and churches need longer runs than buyers expect.

Source - Alt: Close-up of the HDMI output port on a video production device for connecting cameras to monitors or capture cards

Here's what to weigh:

• Distance. SDI runs reliably up to 300 ft on standard Belden coax. Passive HDMI degrades past 50 ft. If your cameras are more than a cable's length from your switching position, SDI wins by default.
• Durability. SDI connectors lock in place — no accidental disconnects mid-service. HDMI connectors are fragile, and one kicked cable during a live stream means a lost camera angle.
• Compatibility. Every laptop, mirrorless camera, and gaming console outputs HDMI. Professional and PTZ cameras typically offer SDI. Consumer gear speaks HDMI; production gear speaks SDI.
• Resolution. HDMI supports 4K and HDR natively. 3G-SDI handles 1080p60; you'll need 12G-SDI for 4K, which limits your hardware options and raises costs.
• Cost. SDI cables are cheaper per foot than HDMI and far more durable on repeated coiling and uncoiling. HDMI cables cost more at longer lengths and break sooner.

The practical answer for most growing operations is a switcher with both. Four SDI inputs for your fixed PTZ cameras on long runs, plus HDMI inputs for a laptop, a media player, or a close-range mirrorless camera.

Mixed I/O covers the widest range of production scenarios without converter boxes cluttering the workflow.

Does an NDI video switcher actually need a dedicated network?

Yes. Full NDI at 1080p60 consumes roughly 100–150 Mbps per stream, and three or four NDI sources on a shared office network will choke throughput and introduce visible artifacts in minutes.

Source - Alt: Camera operator filming a live concert event with stage lighting and large projection screens in the background

NDI (Network Device Interface) sends video over standard Ethernet instead of SDI or HDMI.

You can place cameras anywhere on the network, feed in remote laptop screens, and pull in graphics from a separate machine. But the bandwidth math is unforgiving.

Full NDI runs roughly 100–150 Mbps per 1080p60 stream. Four cameras mean 400–600 Mbps of sustained throughput on your LAN before you've opened a browser. Serious NDI deployments run on a dedicated VLAN with IGMP snooping on a managed gigabit switch.

NDI|HX3 cuts bandwidth to roughly 8–20 Mbps per stream using H.264 or H.265 compression, trading one to three frames of latency.

For worship services, lectures, and corporate town halls, that latency is invisible. For fast-switching sports or music, it's noticeable.

The most flexible setup uses NDI as a supplement, not a replacement. Keep primary cameras on SDI or HDMI for zero-latency switching. Bring in NDI for remote feeds, screen shares, or IP cameras that don't justify a dedicated cable run.

What should a video switcher for live streaming actually include?

Built-in SRT or RTMP encoding so you can stream without a laptop, USB-C capture for direct-to-Zoom calls, and enough inputs to cover your camera count plus one for graphics or media playback.

A built-in streaming encoder is what separates a live-streaming switcher from a plain video switcher. SRT or RTMP onboard means you plug in an Ethernet cable, enter your stream key, and you're live on YouTube, Facebook, or a custom RTSP endpoint.

No laptop running OBS, no USB capture card, no extra point of failure. SRT adds forward error correction to keep streams stable over unreliable connections.

USB 3.0 UVC output turns the switcher's program feed into a webcam that Zoom, Teams, and Google Meet recognize instantly. Recording to an SD card or USB drive gives you a local safety copy independent of your internet connection.

And PiP with logo overlay lets you brand the broadcast without separate graphics software.

The feature most buyers overlook is integrated PTZ camera control. If your switcher sends VISCA commands to your cameras — pan, tilt, zoom, and preset recall — over IP or serial, you've eliminated the need for a separate joystick controller and possibly an extra crew member.

For a two-person church tech team or a solo lecture-capture operator, that consolidation matters.

Which video switcher hardware fits which setup?

The right choice comes down to three things: how many cameras you're running, how far the cables need to reach, and whether you need to stream, record, or both.

Source - Alt: Video camera set up in a church recording a live service with Christmas decorations and crucifix at the altar

Solo creators and small desk setups ($295–$350)

If you're running two or three cameras within arm's reach (a YouTube desk, a podcast, a small Twitch stream), a four-input HDMI switcher does the job. The Blackmagic ATEM Mini Pro is the default here for good reason: affordable, streams directly, and has well-documented software control.

The ceiling is HDMI-only input.

You can't connect a PTZ camera on a long SDI run, and the USB-C output uses USB 2.0 with MJPEG compression, not the lossless UVC feed most buyers assume. For a desk setup where every cable is under six feet, that's fine. For anything bigger, you'll outgrow it.

Small studios, churches, classrooms, and corporate events ($1,000–$2,000)

This is where requirements shift fast. Longer cable runs need SDI. NDI sources need native support. Streaming needs to work without a laptop. PTZ control needs to live at the switching position.

It's also the tier with the fewest good options.

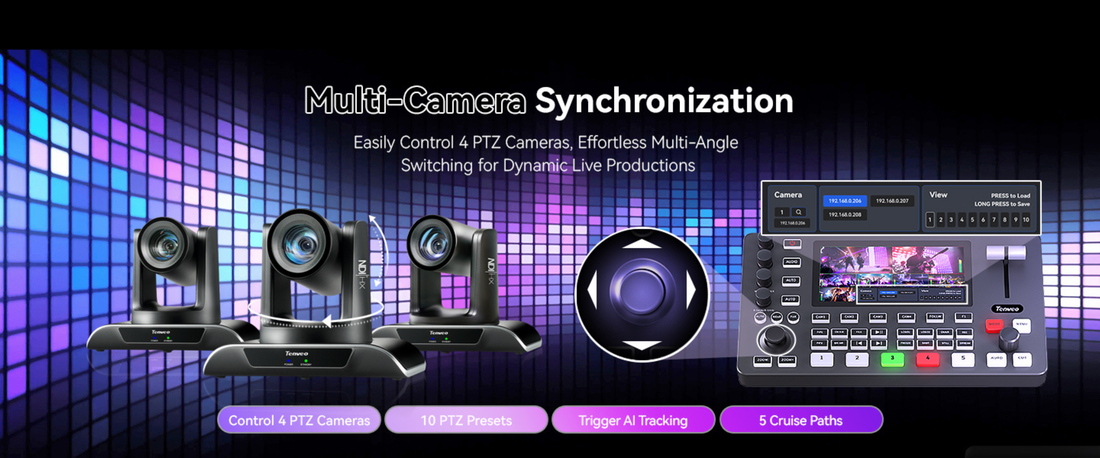

The Tenveo TEVO-PC500 fills the gap with 4× SDI and 4× HDMI inputs, native NDI, SRT/RTMP/RTSP streaming without an external encoder, UVC capture over USB 3.0 Type-C, SD card and USB drive recording, and a built-in joystick with zoom rocker for PTZ camera control.

Browser-based control from any device on the LAN means your director doesn't need to be standing at the unit.

The alternatives in this range each leave something on the table.

• The ATEM Mini Extreme ISO ($2,195) gives you eight inputs and ISO recording, but every input is HDMI with no SDI, no NDI, and no PTZ control.
• The Roland V-8HD is legendary for reliability, but doesn't stream or record natively and lacks SDI.
• The YoloBox Pro is brilliantly portable with cellular bonding, but it caps at three HDMI inputs and 1080p.
• And the Feelworld LIVEPRO L4 hits a low price with a touchscreen and one SDI input, but vendor support is a known weak point.

Corporate hybrid and broadcast-tier ($3,000+)

For eight-plus SDI inputs, ISO recording on every channel, and intercom integration, you're looking at the ATEM Television Studio HD8 ISO at roughly $3,995 or the Roland V-160HD at $4,999. Both are excellent. Both cost two to three times what a mid-tier mixed-I/O switcher runs.

One number worth keeping in mind: a freelance multi-cam crew — director, two camera operators, audio — runs $1,500–$3,000 per event in most U.S. markets. A mid-tier switcher with PTZ control lets a two-person team handle what used to take four. If you're producing weekly services or regular lecture captures, the hardware pays for itself fast.

Conclusion

The video mixer switcher market is split into two well-served tiers and one badly served middle. Below $500, HDMI-only consumer switchers handle basic multi-cam work.

Above $3,000, broadcast-grade production switchers handle everything. Between those two, where most small studios, churches, classrooms, and corporate event teams actually operate, the options have been thin for years.

That's starting to change. Mixed-I/O hardware with SDI, HDMI, NDI, built-in streaming, and integrated PTZ control is arriving at price points that make sense for operations producing content weekly rather than annually.

The Tenveo TEVO-PC500 is one example of what the mid-tier should look like, and for teams that have been getting by with an ATEM Mini and a prayer, it's worth a serious look.

FAQ

Can a video switcher stream directly to YouTube or Facebook?

Only if it has a built-in streaming encoder with SRT or RTMP support. Budget HDMI switchers like the original ATEM Mini output via USB only, so you'll need a laptop running OBS or similar software to go live.

Mid-tier and higher switchers with onboard encoding connect directly to your streaming platform over Ethernet.

Is a hardware switcher better than OBS?

They solve different problems, and most serious operators use both.

A hardware switcher handles live camera switching with sub-frame latency and physical buttons you can feel. OBS runs on a computer and handles graphics overlays, scene presets, and stream encoding.

The typical pro setup feeds the switcher's USB or NDI output into OBS for the graphics layer and final stream.

How many inputs do I actually need?

Count your cameras, then add one for a graphics laptop or media player. Most small productions land on four to six.

If you're running dedicated wide, medium, and close-up angles plus a screen share, that's four inputs minimum. Eight gives you room to grow without replacing the switcher.
